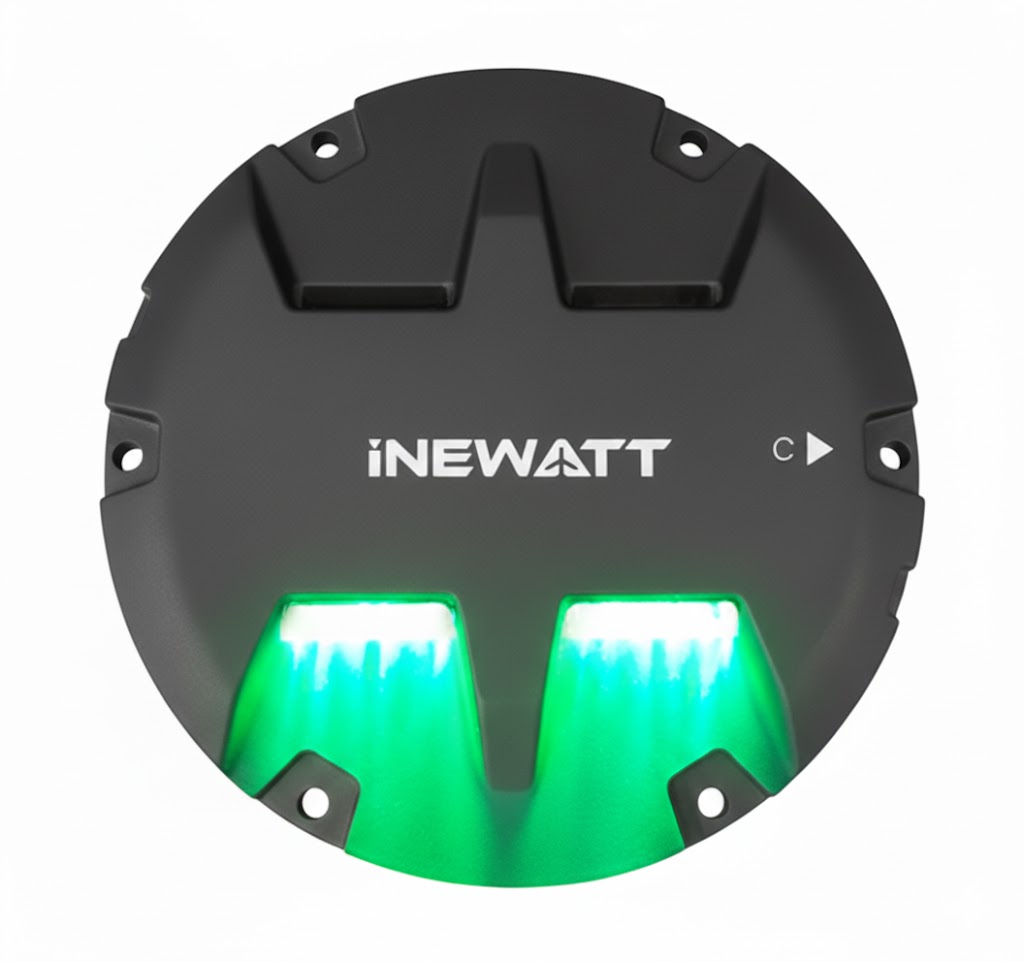

Runway Threshold – Wing Bar Inset
Elevated threshold light-wing bar light to mark and clarify where the runway threshold is located
Runway Threshold – Wing Bar Inset emits a green light and is placed at the beginning of the part of the runway where it is
recommended to land. Wing bar lights are used when it needs to be clarified where the runway threshold is located and it is placed
as a continuation of the threshold out of the specified runway area.
The Threshold light-Wing bar light has a light intensity of 5,000 cd and a life span of 60,000 hours.
The light complies with standards for ICAO and NATO:STANAG 3316.
Article number
- IWT.850.THR.01.LT
- IWT.850.THR.01.RT
- IWT.850.THR.02. LT(Wing bar)
- IWT.850.THR.02. RT(Wing bar)
Powerd by
- 6.6A Series Circuit
- 6.6A Series Circuit
- 6.6A Series Circuit
- 6.6A Series Circuit
Power consumption
- 36 VA
- 36 VA
- 36 VA
- 36 VA
Light intensity
- 10,000 cd
- 10,000 cd
- 10,000 cd
- 10,000 cd
Basic Facts
- Light source LED
- LED Lifespan >60,000 hours
- Working temperature -55° to 55°C
- Color Green
- Protection Degree (IP) IP67
- Dimensions ø304 x 90 mm
- Weight 9.3 kg
