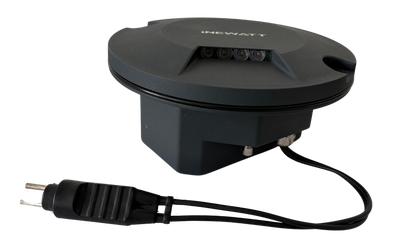

Runway Centerline Light Inset

Inset edge light to mark the edges of the runway

Color emitted directly by LEDs. Fully compatible with existing AFL infrastructure.

A surge protection device is provided in the electronics as required by the FAA “Engineering Briefing No.67”.

Specially-designed structure, protruding only 6.35mm above finish grade.

Not require optical adjuIWTent after LED module or Lens replacement.

Pressure Valve for water tightness test after production or overhaul.

Arctic Kit Optional. Monitoring Optional.

Complies with standards for ICAO and NATO:STANAG 3316.

Article number

  • IWT.852.RWC.01
  • IWT.852.RWC.02
  • IWT.852.RWC.03

Powerd by

  • 6.6A Series Circuit
  • 6.6A Series Circuit
  • 6.6A Series Circuit

Power consumption

  • 32 VA
  • 32 VA
  • 32 VA


  • White / White
  • White / Yellow
  • White / Red

Basic Facts

  • Light source LED
  • LED Lifespan >60,000 hours
  • Working temperature -55° to 55°C
  • Protection Degree (IP) IP67
  • Dimensions ø203.2 x 90 mm
  • Weight 3.2 kg
