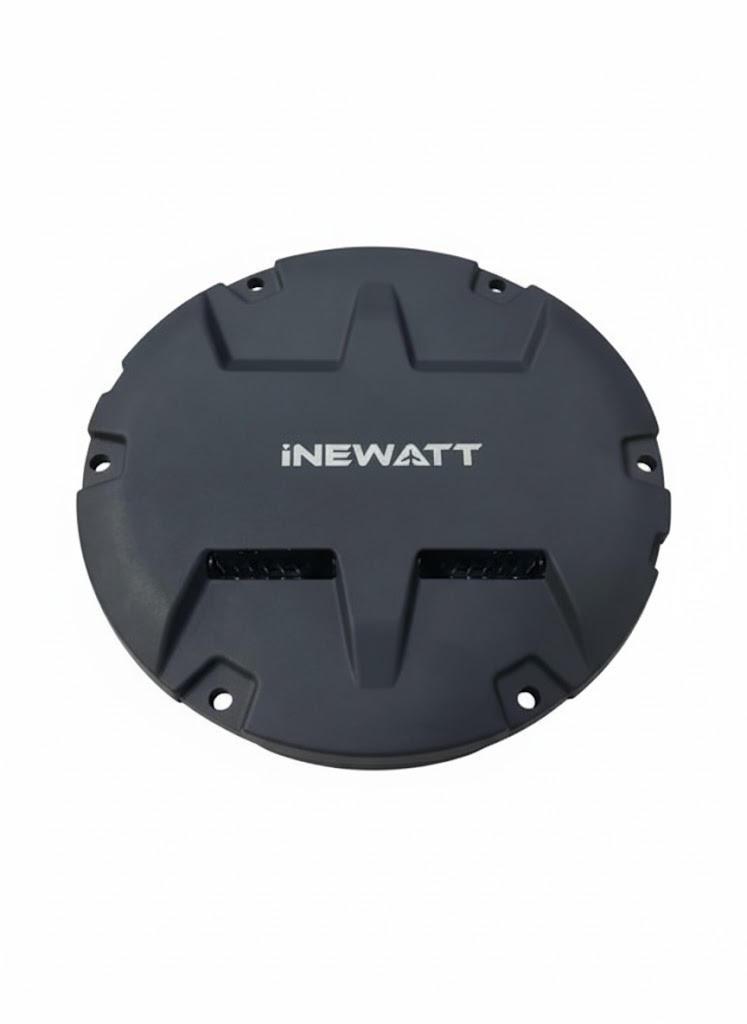

Runway Threshold-End Light Inset

Inset, bidirectional threshold-end light to mark the threshold/end of the runway

Threshold lights/end lights are installed to provide quick and positive identification of the threshold/end of a runway.

The colour is emitted directly by LEDs in green or red depending on the viewing angle where red light towards the runway indicates the end of the runway for a departing aircraft and green outwards from the end of the runway to indicate the threshold of landing aircraft.

Runway Threshold / End Light Inset is a bidirectional light and protrudes 6.35 mm above the ground.

The light complies with standards for ICAO and NATO:STANAG 3316.

Article number

  • IWT.850.THR.03

Powerd by

  • 6.6A Series Circuit

Power consumption

  • 42 VA

Light intensity

  • Green - 10,000 cd / Red - 2,500 cd

Basic Facts

  • Light source LED
  • LED Lifespan >60,000 hours
  • Working temperature -55° to 55°C
  • Protection Degree (IP) IP67
  • Dimensions ø304 x 90 mm
  • Weight 9.3 kg
